MicroFox T-Hunt Transmitters
The Byonics MicroFox line of transmitters include both a transmitter and a foxhunt controller in one device to make putting on a hidden transmitter hunt easy. Just conenct to any 2-meter SMA antenna, add a battery, configure with your callsign, and hide the transmitter.

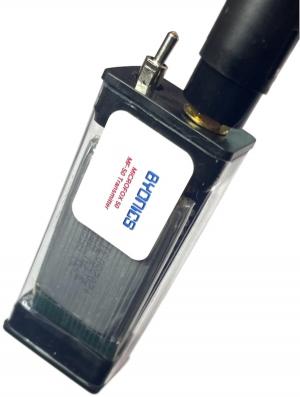

MicroFox 50

The MicroFox 50 is a small T-Hunt transmitter capable of transmitting on any 2-meter frequency (144MHz - 148MHz) with user adjustable power from 0.05mW to 50mW and a USB rechargeable LiPo battery. It can be heard over 3 miles away, so it's great for a walking or ARDF style hunt. It includes a 650mah Li-Po battery. The MF-50 case size is 70x29x18mm.
MicroFox 50 User Manual - v0.3
Web Based Configuration Tool
Firmware files directory
MicroFox 50 - $100
Includes transmitter, battery, and case. Does not include antenna, or Micro-USB cable.
MicroFox 50 Combo - $130
Includes transmitter, battery, case, V4 SMA antenna, and Micro-USB programming cable.

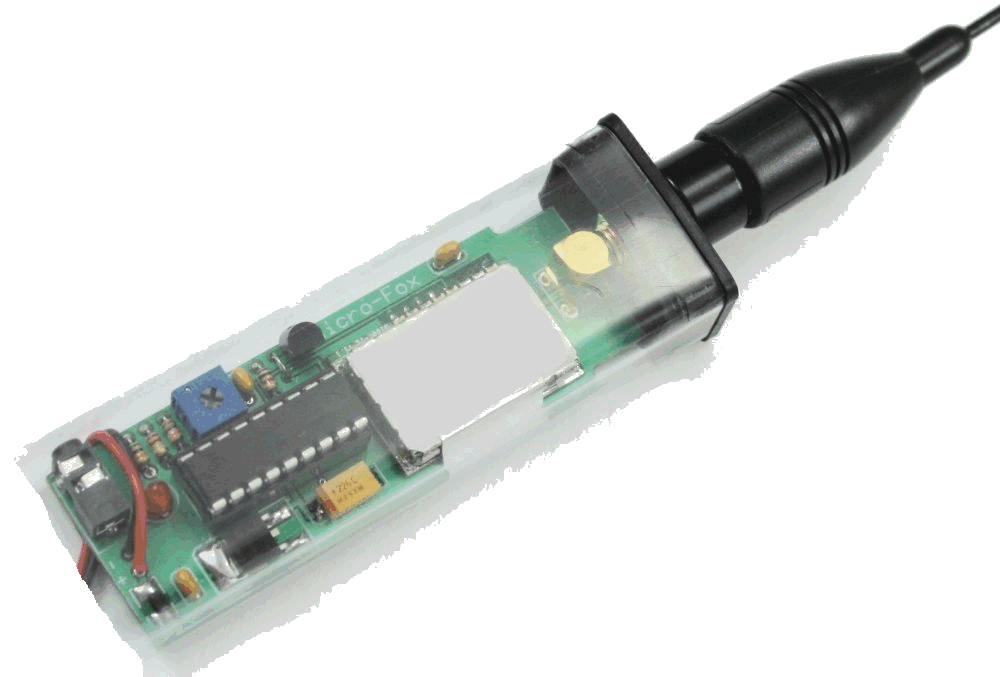

MicroFox 15

The MicroFox 15 is a 15mW T-Hunt transmitter capable of transmitting on any 2-meter frequency (144MHz - 148MHz). It can be heard over 3 miles away, so it's great for a walking or ARDF style hunt. A standard 9V battery should provide about 20 hours of use at a 50% duty cycle. With the USB or serial programming cable and Windows configuration software, the user can control all timing, tones, and Morse Code ID.
MicroFox 15 User Manual - v1.7
MicroFox Config Program - Windows Configuration Program v1.65 and firmware for MF-15 and MF-15S.
New Web Based Configuration Tool
Out of stock. Replaced by MicroFox 50 above.
MicroFox 15S

The MicroFox-15S is similar to a MF-15, but is small enough to fit with a LiPo battery inside a 35mm film canister (32mm x 54mm). It uses the same firmware and configuration sofware as the MF-15, so it has all the same features, but in a smaller form. It will run for about 16 hours at full duty cycle.
MicroFox 15S User Manual - v0.6
New Web Based Configuration Tool
Out of stock. Replaced by MicroFox 50 above.
MicroFox LiPo 650 - $12
Additional 650mAh LiPo battery.
MicroFox PicCon

The MicroFox PicCon combines a 700mW transceiver and our PicCon fox controller capable of operating on any 2-meter frequency (144MHz - 148MHz). It runs on 3 AA batteries for about 20 hours at 1/2 duty cycle. Because it includes a transceiver, it can be remote controlled via DTMF tones. In addition to starting and stopping the transmitter, all timing, tones, Morse code ID, and other user settings can be remotely adjusted at any time. All settings can also be configured with either a serial or USB programming cable and Windows configuration software. Note that the case was previously beige or bright orange and is now black.
MicroFox PicCon User Manual - v0.61
MicroFox Config Program - Windows Configuration Program v1.95 and firmware for MF-PC and MF2.
MicroFox Config Program - Windows Configuration Program v1.9 and firmware for MF-PC and MF2.
New Web Based Configuration Tool
MicroFox PicCon - $126
Does not include SMA antenna, or programming cable.
MicroFox PicCon USB Combo - $165
Includes MF-PC, V2 SMA antenna, and USB programming cable. USB Drivers can be found below.
MicroFox PicCon Serial Combo - $160
Includes MF-PC, V2 SMA antenna, and serial programming cable.
MicroFox2

The MicroFox2 is similar to the MF-PicCon, but is small enough to fit with a LiPo battery inside a small clear rectangular tube. It uses the same configuration sofware and very similar firmware as the MF-PC, so it has all the same features, but in a smaller form. It will run for about 5 hours at half duty cycle.
MicroFox2 User Manual - v0.5
MicroFox2 Firmware Update - v0.61
New Web Based Configuration Tool
MicroFox2 USB Combo - $149
Includes MF2, V4 antenna, 650mAh LiPo battery, battery charger, and USB programming cable.
MicroFox LiPo 650 - $12
Additional 650mAh LiPo battery.
USB-2.5 Cable - $23
USB to 2.5mm stereo serial cable
USB cable drivers - v1.7
Having driver problems with Windows 11?
Try this link
Foxhunt List
Do you have foxhunts in your area? Are you looking for a nearby hunt? Visit the new site
https://foxhuntlist.com to find or submit a hunt.
Additional Byonics Foxhunting Products
